TK130GL

Video Features Specifications

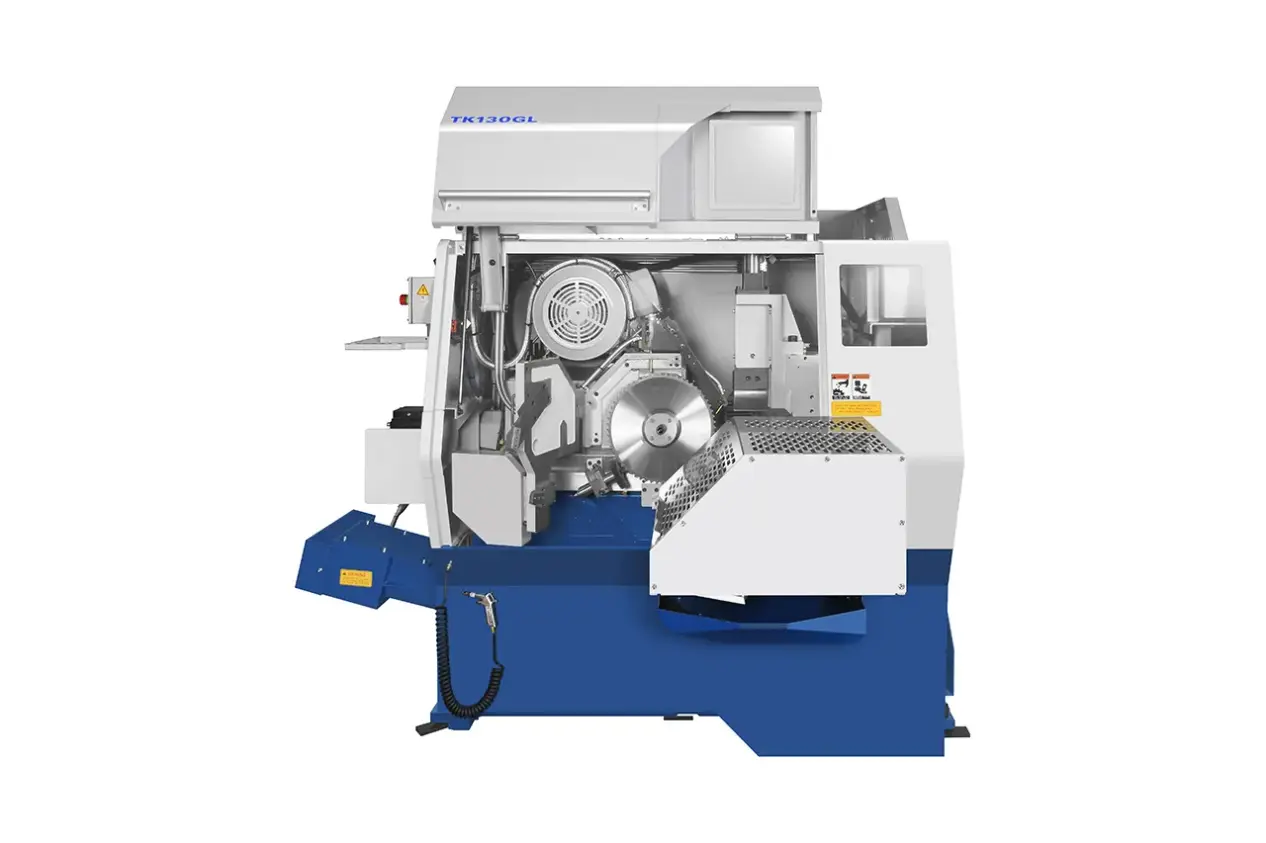

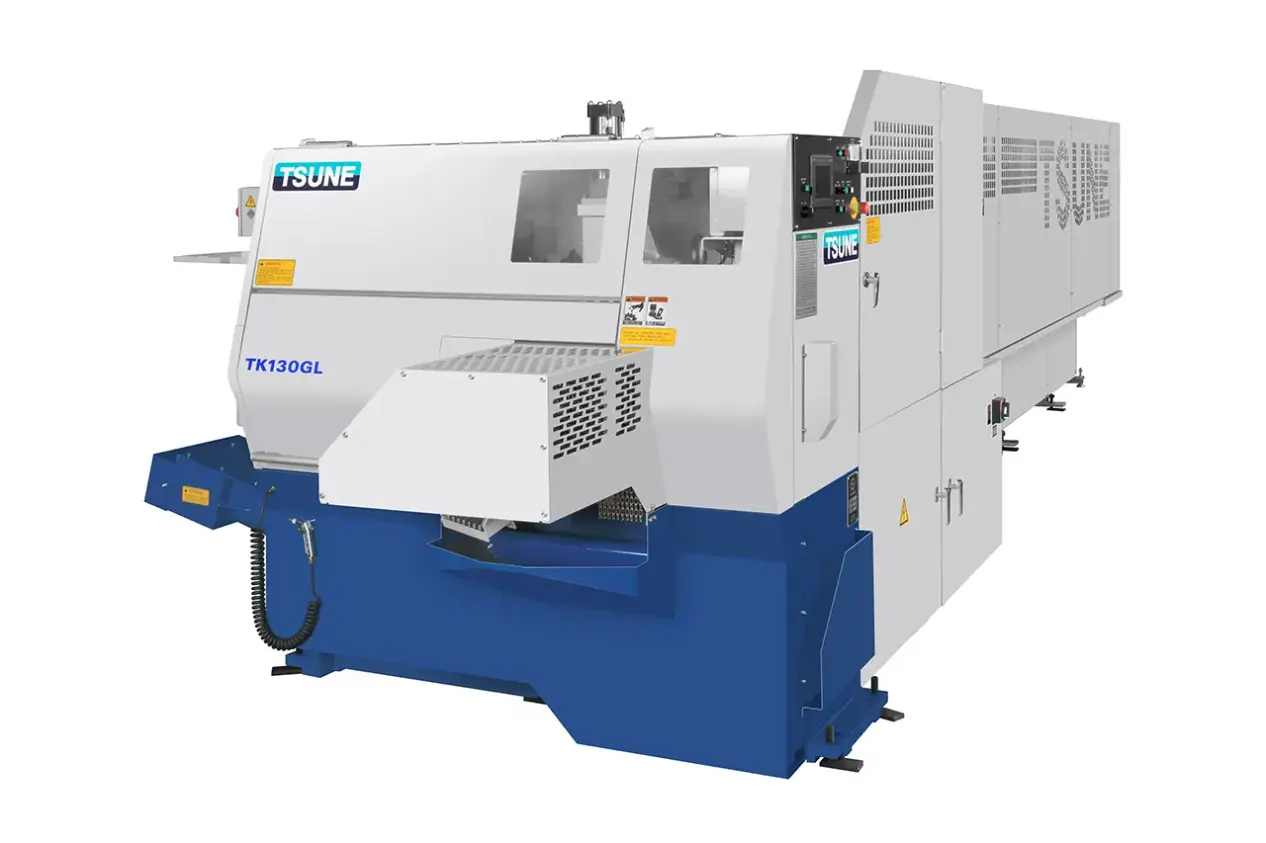

This automated CNC saw is capable of achieving a nearly machined finish with high precision at remarkable speeds. Operators of any skill level can easily set up the machine and then step away.

Request A Quote


TSUNE Mist

Longer blade life, less cleanup.

Durable

Built to last, even in the harshest environments.

Safe

Safety measures without compromise.

Customizable

Configure a machine to fit your needs.


Discover all the features

Specifications

Base Machine Capacity (Round) 25mm - 130mm 0.984in - 5.12in
Capacity (Square) 25mm - 100mm 0.984in - 3.94in
Cut Off Length 10mm - End of Bar
ⓘLengths over 150mm require support
 0.394in - End of Bar
ⓘLengths over 6in require support
GFC Stroke (standard) *Upgrades Available
ⓘUp to
1000mm (39.37in)
 615mm 24.21in
Minimum Possible Remnant 55mm 2.17in
Saw Motor 11 kW 15 HP
Saw Head Feed AC servo motor + Ball screw
Bar Stock Feed AC servo motor + Ball screw
Material Type Designed for ferrous cutting operations. Contact us for a complete list of material grades.
Saw Weight 3,300 kg 7,275 lbs

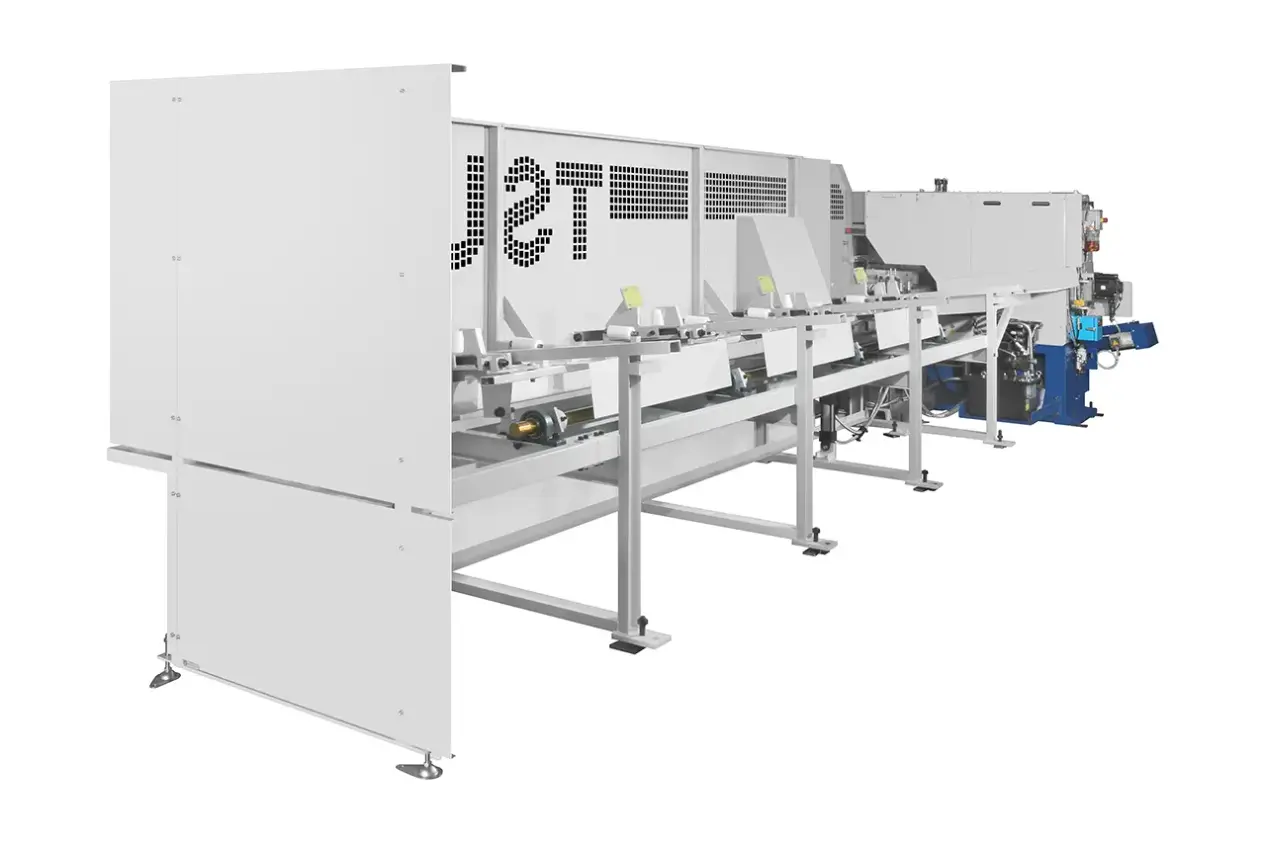

Auto Loader Magazine Width 800mm 31.4in
Material Length (standard) *Upgrades Available 3 - 6m 10 - 20ft
Max Loading Weight 3,000 kg 6,614 lbs
Auto Loader Weight 950 kg 2,134 lbs

Features

TSUNE Mist

Less cleanup and better performance.

Automatic Clamping

No need to manually adjust clamps.

High Precision

Repeatable and precise cut lengths all day long.

Unmatched Support

Anything you need, we're ready to help.

Spare Parts

We have what you need to stay operational.

Based in the USA

Work directly with Tsune experts in the US.
