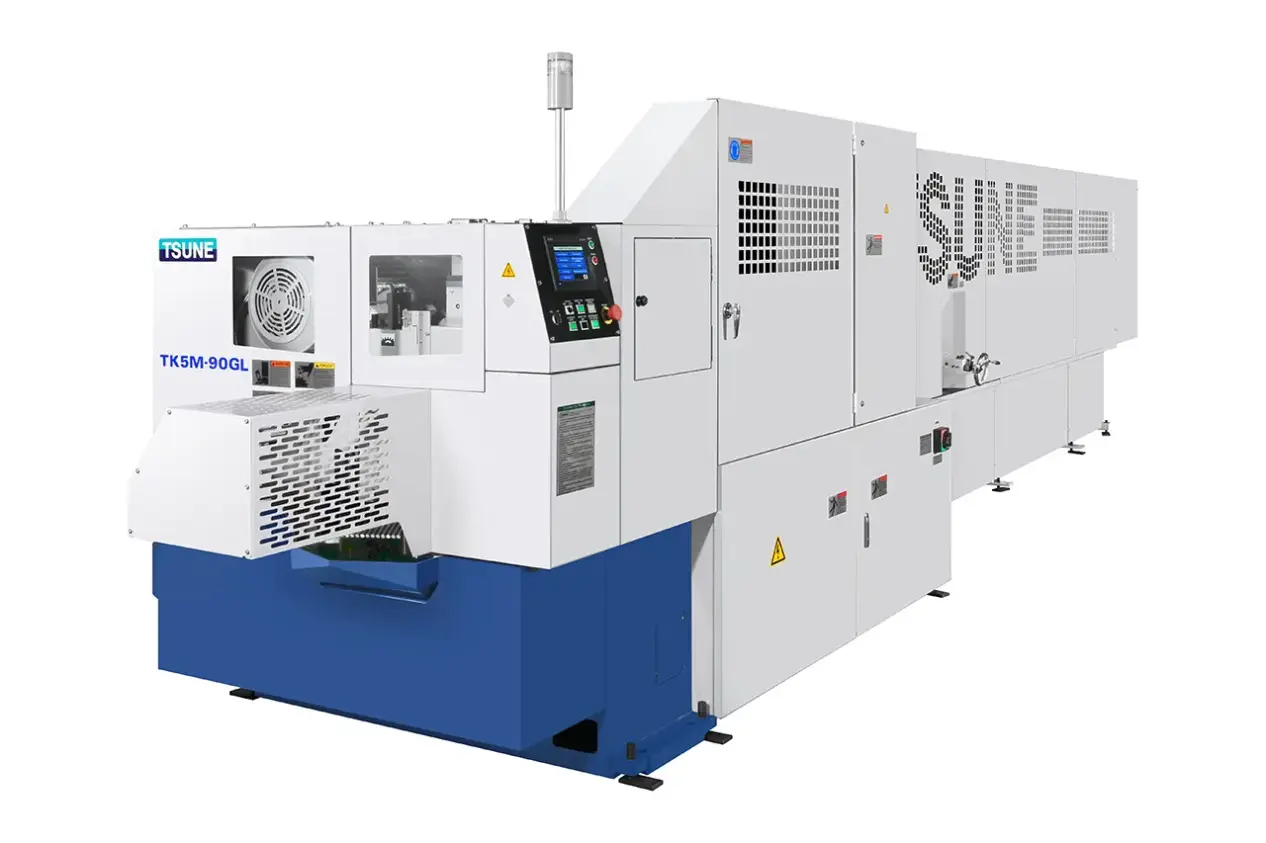

TK5M-90GL

Video Features Specifications

This automated CNC saw is capable of achieving a nearly machined finish with high precision at remarkable speeds. Operators of any skill level can easily set up the machine and then step away.

Request A Quote


TSUNE Mist

Longer blade life, less cleanup.

Durable

Built to last, even in the harshest environments.

Safe

Safety measures without compromise.

Customizable

Configure a machine to fit your needs.


Discover all the features

Specifications

Base Machine Capacity (Round) 10mm - 90mm 0.394in - 3.543in
Capacity (Square) 10mm - 80mm 0.394in - 3.149in
Cut Off Length 10mm - End of Bar
ⓘLengths over 200mm require support
 0.394in - End of Bar
ⓘLengths over 8in require support
GFC Stroke (standard) *Upgrades Available
ⓘUp to
1000mm (39.37in)
 620mm 24.4in
Minimum Possible Remnant 50mm 1.969in

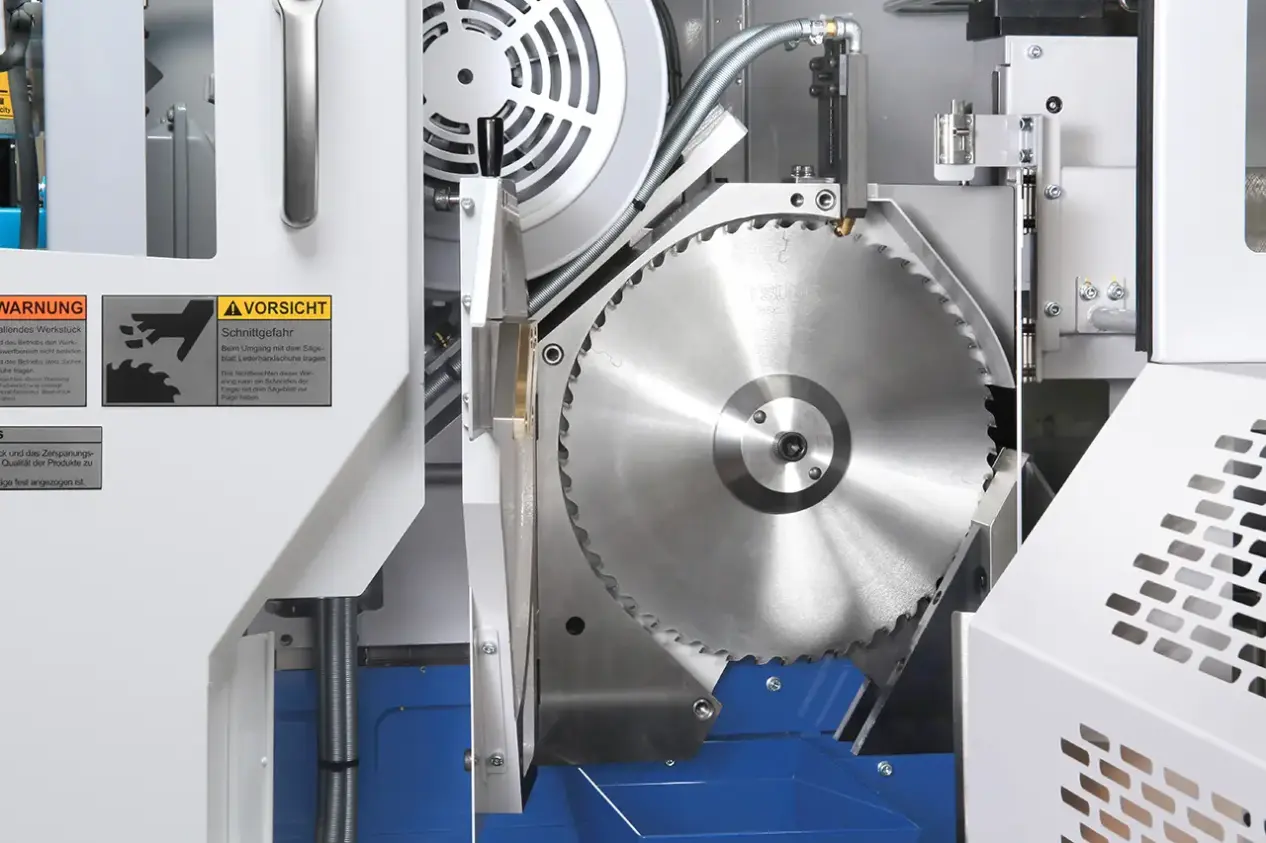

Saw Motor 11 kW 25 HP
Saw Head Feed AC servo motor + Ball screw
Bar Stock Feed AC servo motor + Ball screw
Material Type Designed for non-ferrous cutting operations. Contact us for a complete list of material grades.
Saw Weight 1,700 kg 3,784 lbs

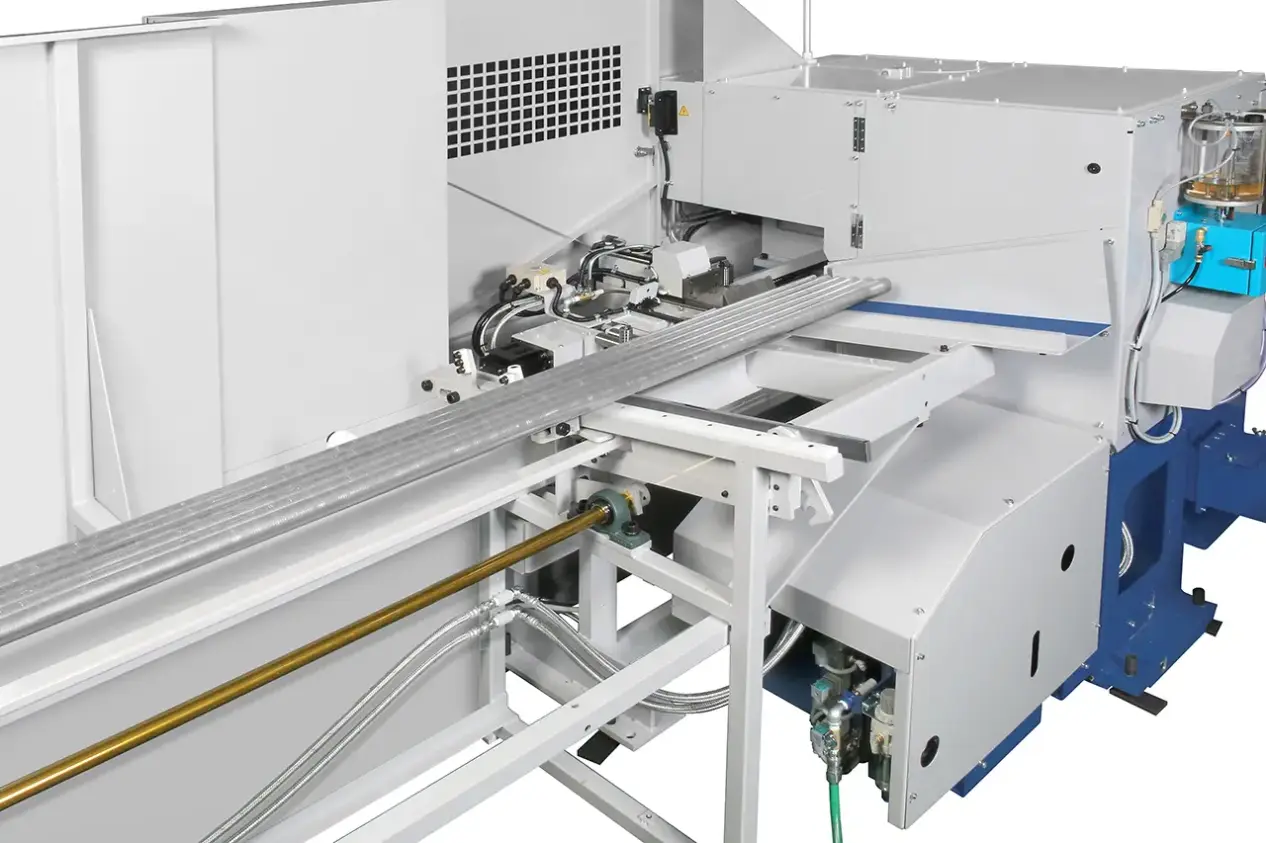

Auto Loader Magazine Width 700mm 27.56in
Material Length (standard) *Upgrades Available 2.6 - 6m 8.5 - 20ft
Max Loading Weight 820 kg 1,808 lbs
Auto Loader Weight 550 kg 1,213 lbs

Features

TSUNE Mist

Less cleanup and better performance.

Automatic Clamping

No need to manually adjust clamps.

High Precision

Repeatable and precise cut lengths all day long.

Unmatched Support

Anything you need, we're ready to help.

Spare Parts

We have what you need to stay operational.

Based in the USA

Work directly with Tsune experts in the US.
