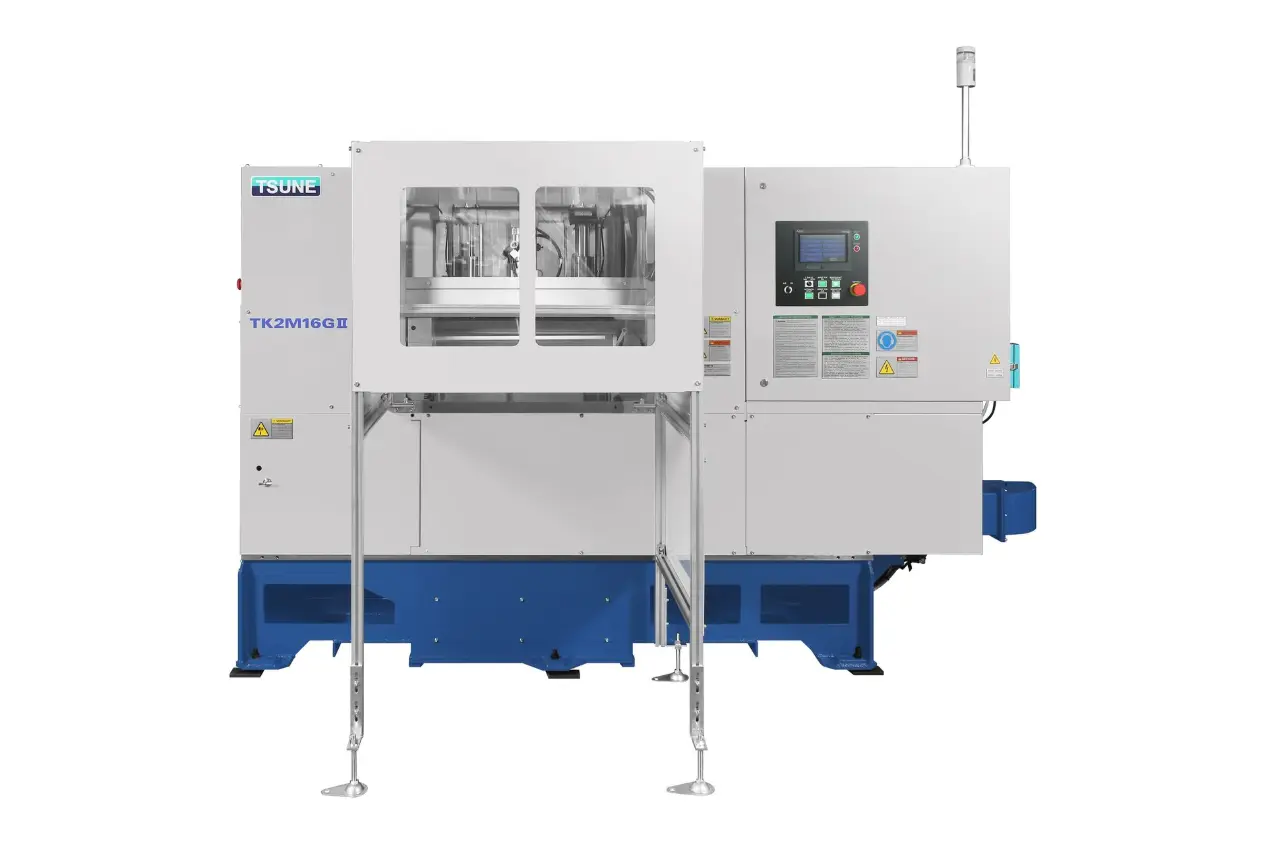

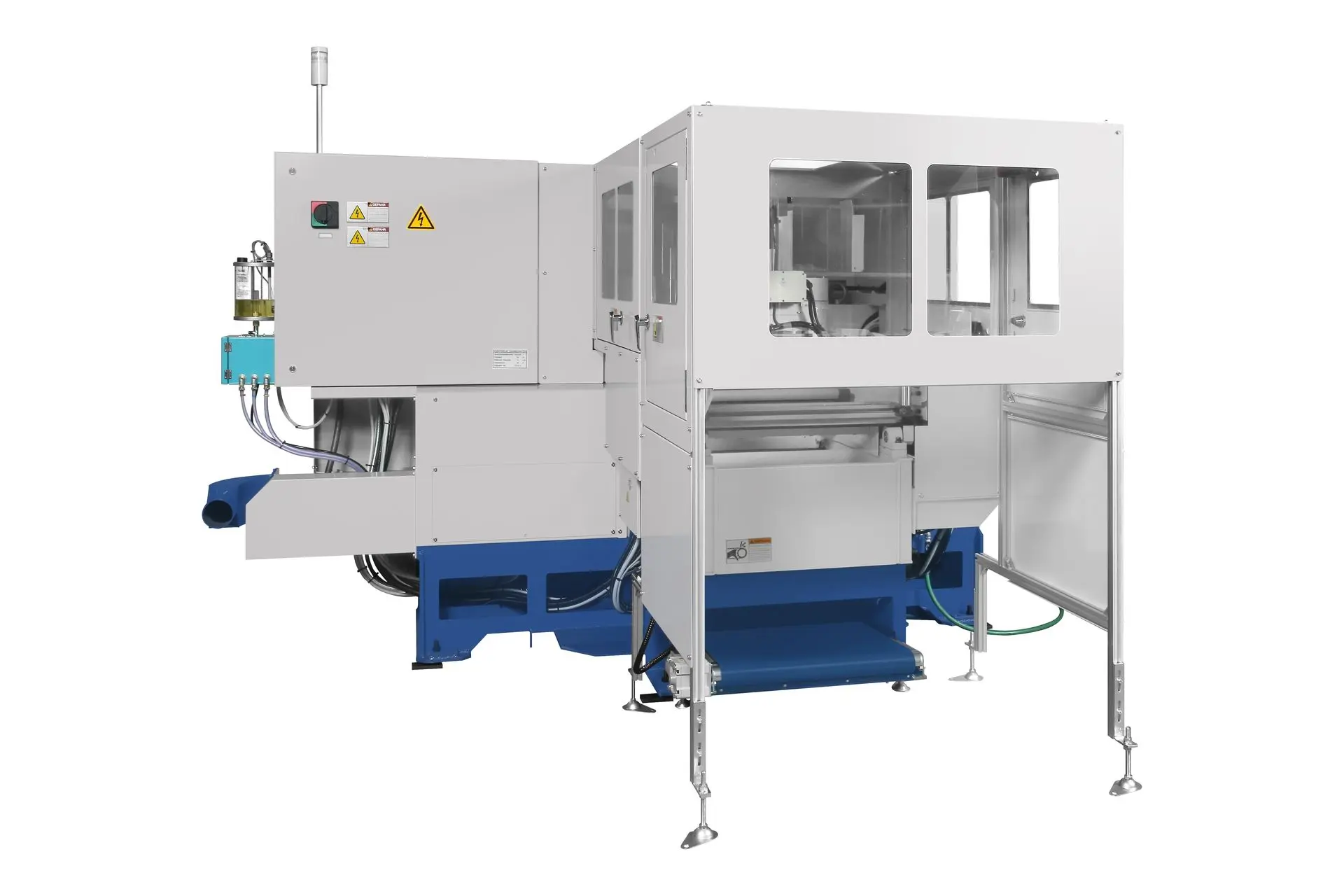

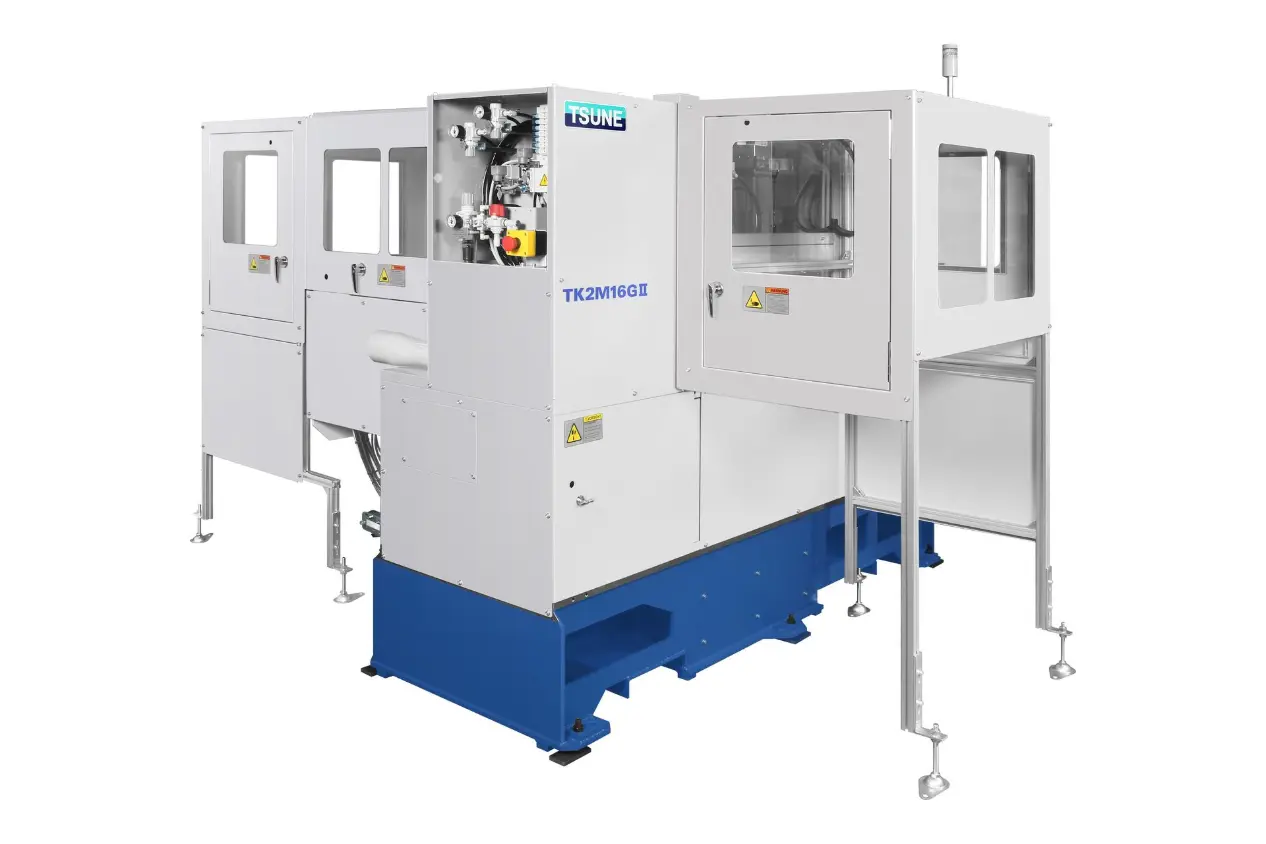

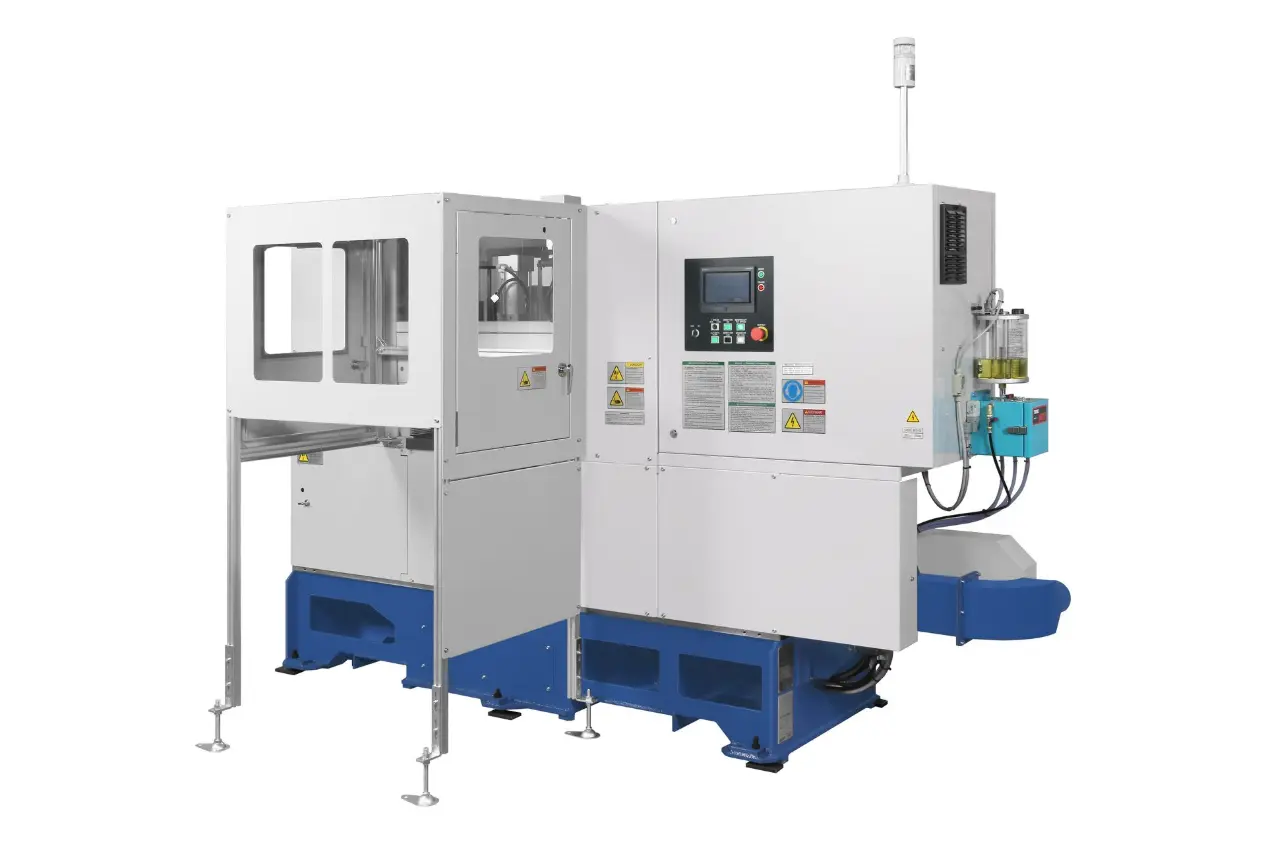

TK2M16GII

Video Features Specifications

This automated CNC saw is ideal for aluminum plate and extrusions. It is capable of achieving a nearly machined finish with high precision at remarkable speeds.

Request A Quote


TSUNE Mist

Longer blade life, less cleanup.

Durable

Built to last, even in the harshest environments.

Safe

Safety measures without compromise.

Customizable

Configure a machine to fit your needs.


Discover all the features

Specifications

Base Machine Capacity (Height) Up to 100mm Up to 3.937in
Capacity (Width) Up to 600mm Up to 23.62in
Cut Off Length 10mm - 450mm 0.394in - 17.72in
GFC Stroke (standard) 450mm 17.72in
Minimum Possible Remnant 45mm 1.772in

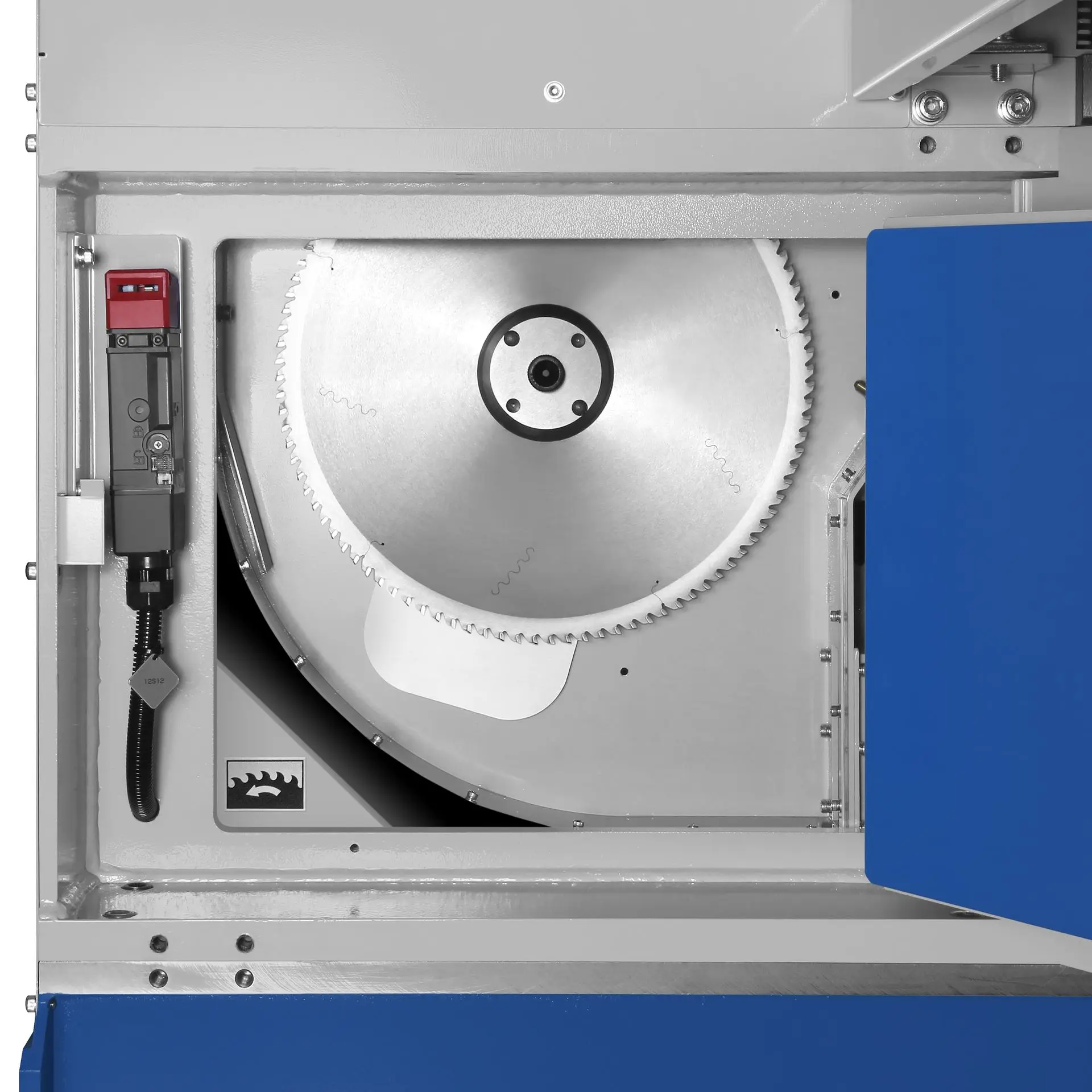

Saw Motor 5.5 kW 7.4 HP
Saw Head Feed AC servo motor + Ball screw
Bar Stock Feed AC servo motor + Ball screw
Material Type Designed for non-ferrous cutting operations. Contact us for a complete list of material grades.
Saw Weight 2,400 kg 5,291 lbs

Features

TSUNE Mist

Less cleanup and better performance.

Automatic Clamping

No need to manually adjust clamps.

High Precision

Repeatable and precise cut lengths all day long.

Unmatched Support

Anything you need, we're ready to help.

Spare Parts

We have what you need to stay operational.

Based in the USA

Work directly with Tsune experts in the US.
