TK5C-260G

Video Features Specifications

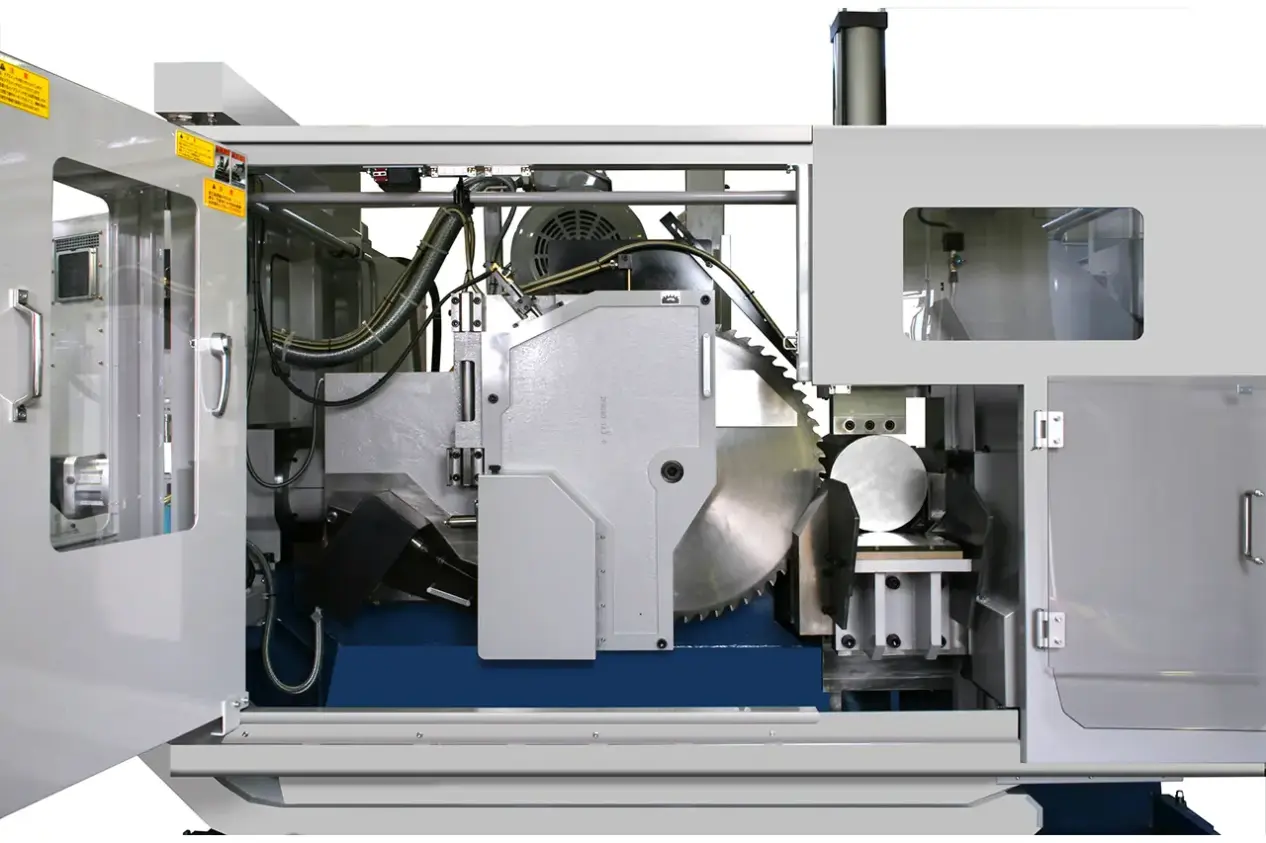

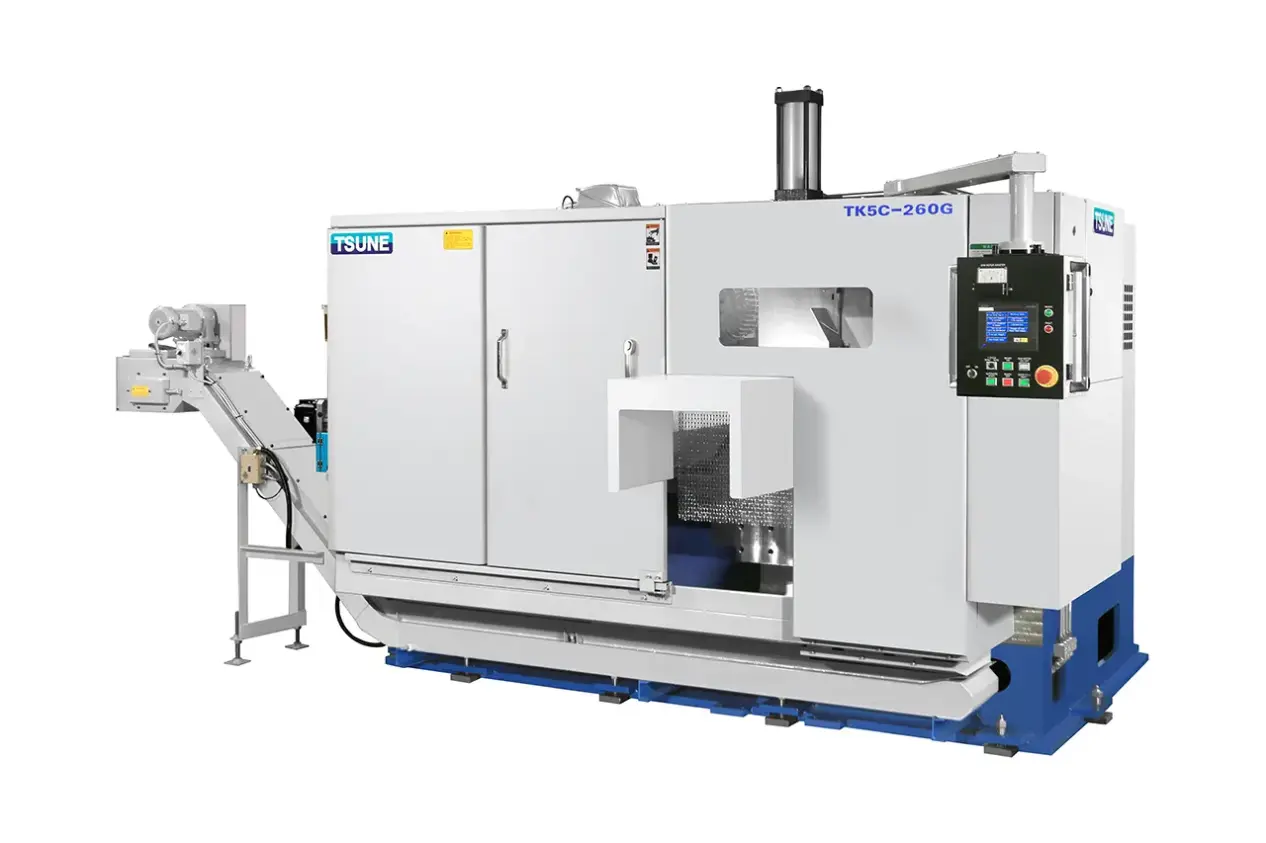

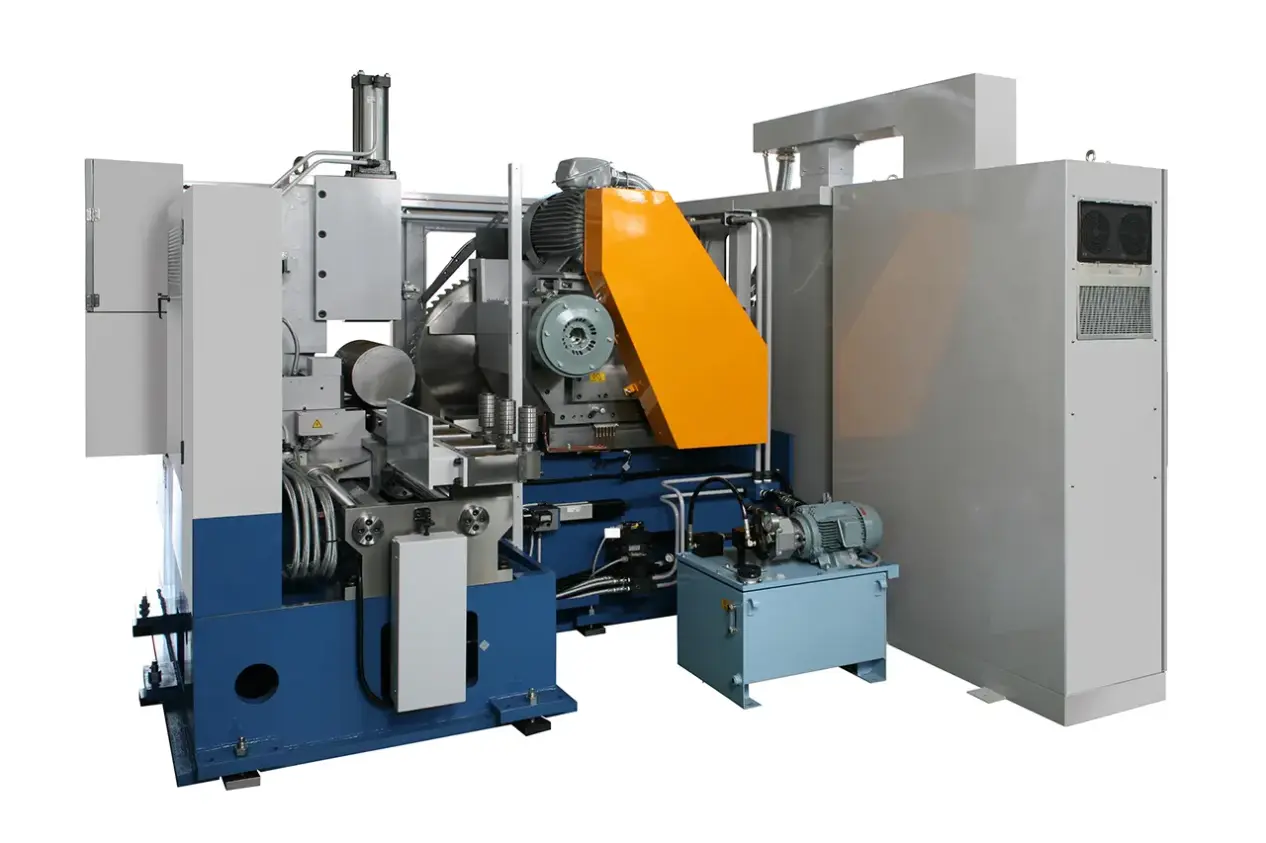

This automated CNC saw is capable of achieving a nearly machined finish with high precision at remarkable speeds. Operators of any skill level can easily set up the machine and then step away.

Request A Quote


TSUNE Mist

Longer blade life, less cleanup.

Durable

Built to last, even in the harshest environments.

Safe

Safety measures without compromise.

Customizable

Configure a machine to fit your needs.


Discover all the features

Specifications

Base Machine Capacity (Round) 80mm - 270mm 3.15in - 10.63in
Capacity (Square) 80mm - 235mm 3.15in - 9.25in
Cut Off Length 35mm - End of Bar 1.378in - End of Bar
GFC Stroke (standard) *Upgrades Available
ⓘUp to
1000mm (39.37in)
 715mm 28.149in
Minimum Possible Remnant 160mm 6.299in
Saw Motor 37 kW 50 HP
Saw Head Feed AC servo motor + Ball screw
Bar Stock Feed AC servo motor + Ball screw
Material Type Designed for ferrous cutting operations. Contact us for a complete list of material grades.
Saw Weight 9,300 kg 20,503 lbs

Features

TSUNE Mist

Less cleanup and better performance.

Automatic Clamping

No need to manually adjust clamps.

High Precision

Repeatable and precise cut lengths all day long.

Unmatched Support

Anything you need, we're ready to help.

Spare Parts

We have what you need to stay operational.

Based in the USA

Work directly with Tsune experts in the US.
