TKA50SC

Video Features Specifications

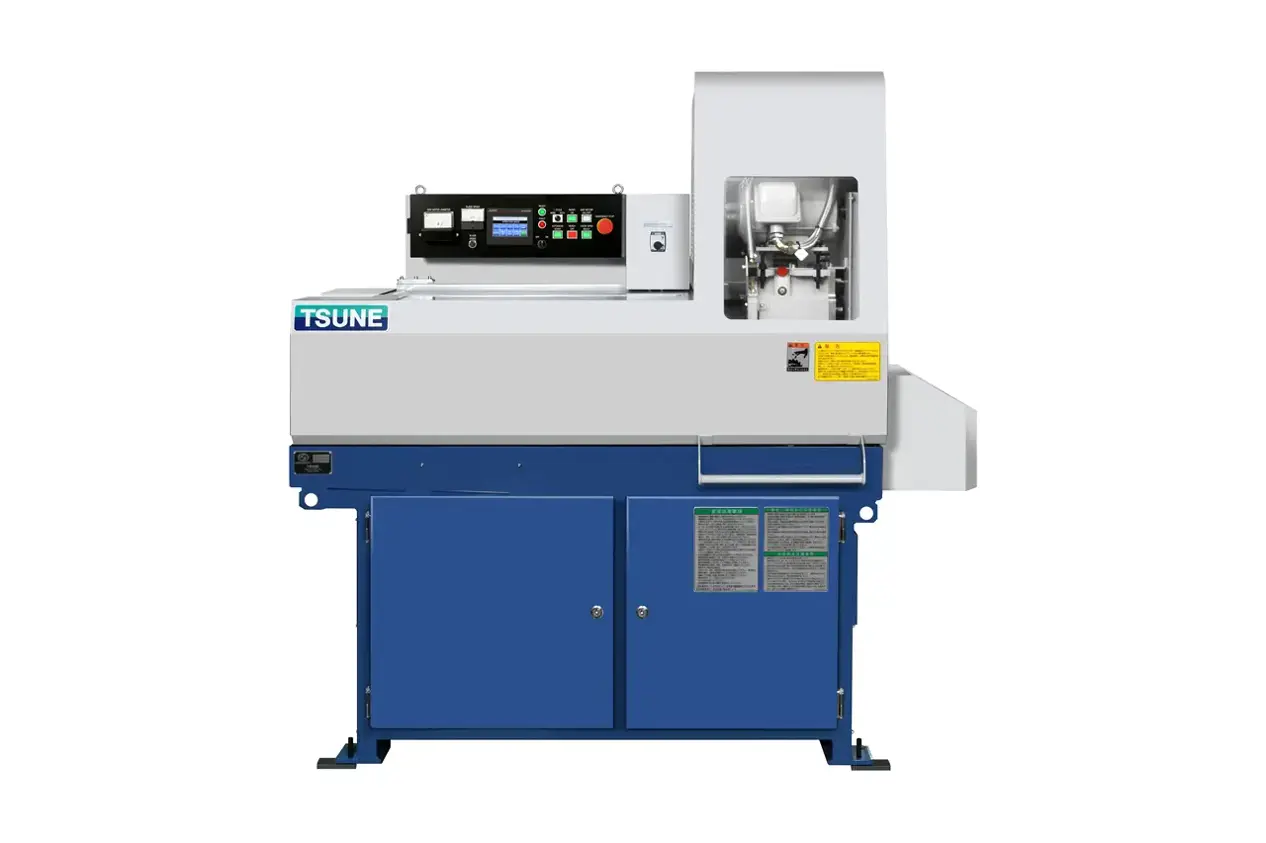

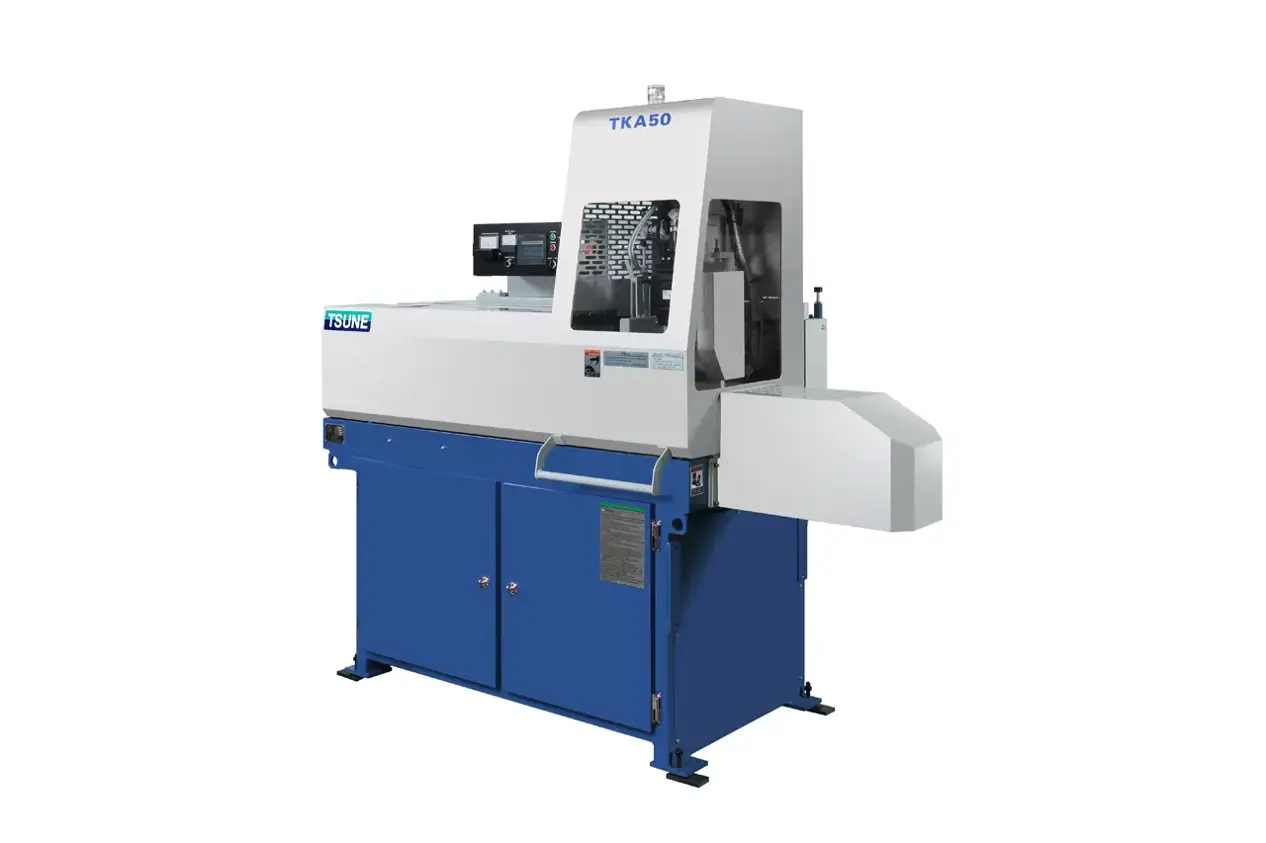

This automatic saw is specifically designed for cutting special shapes, tubing, and small bundles. It excels in the precision cutting of small and delicate parts. The TKA50 utilizes adjustable clamps with jaws tailored to securely hold and position your material for cutting.

Request A Quote


TSUNE Mist

Longer blade life, less cleanup.

Durable

Built to last, even in the harshest environments.

Safe

Safety measures without compromise.

Customizable

Configure a machine to fit your needs.


Discover all the features

Specifications

Base Machine Capacity (Solid) 4mm - 25mm 0.157in - 0.984in
Capacity (Pipe) 4mm - 50mm 0.157in - 1.969in
Cut Off Length 8mm - End of Bar 0.315in - End of Bar
GFC Stroke 600mm 23.62in
Minimum Possible Remnant 63mm 2.48in
Saw Motor (Servo) 2 kW 2.7 HP
Saw Head Feed Pneumatic Cylinder*Upgrades Available
ⓘAC servo motor
+ Ball screw
Bar Stock Feed Pneumatic Cylinder*Upgrades Available
ⓘAC servo motor
+ Ball screw
Material Type Designed for non-ferrous cutting operations. Contact us for a complete list of material grades.
Saw Weight 750 kg 1,653 lbs

Features

Mist or Flood

Coolant options that best fit your application.

Adjustable Clamps

Set the clamps to hold any material perfectly.

High Precision

Repeatable and precise cut lengths all day long.

Unmatched Support

Anything you need, we're ready to help.

Spare Parts

We have what you need to stay operational.

Based in the USA

Work directly with Tsune experts in the US.
