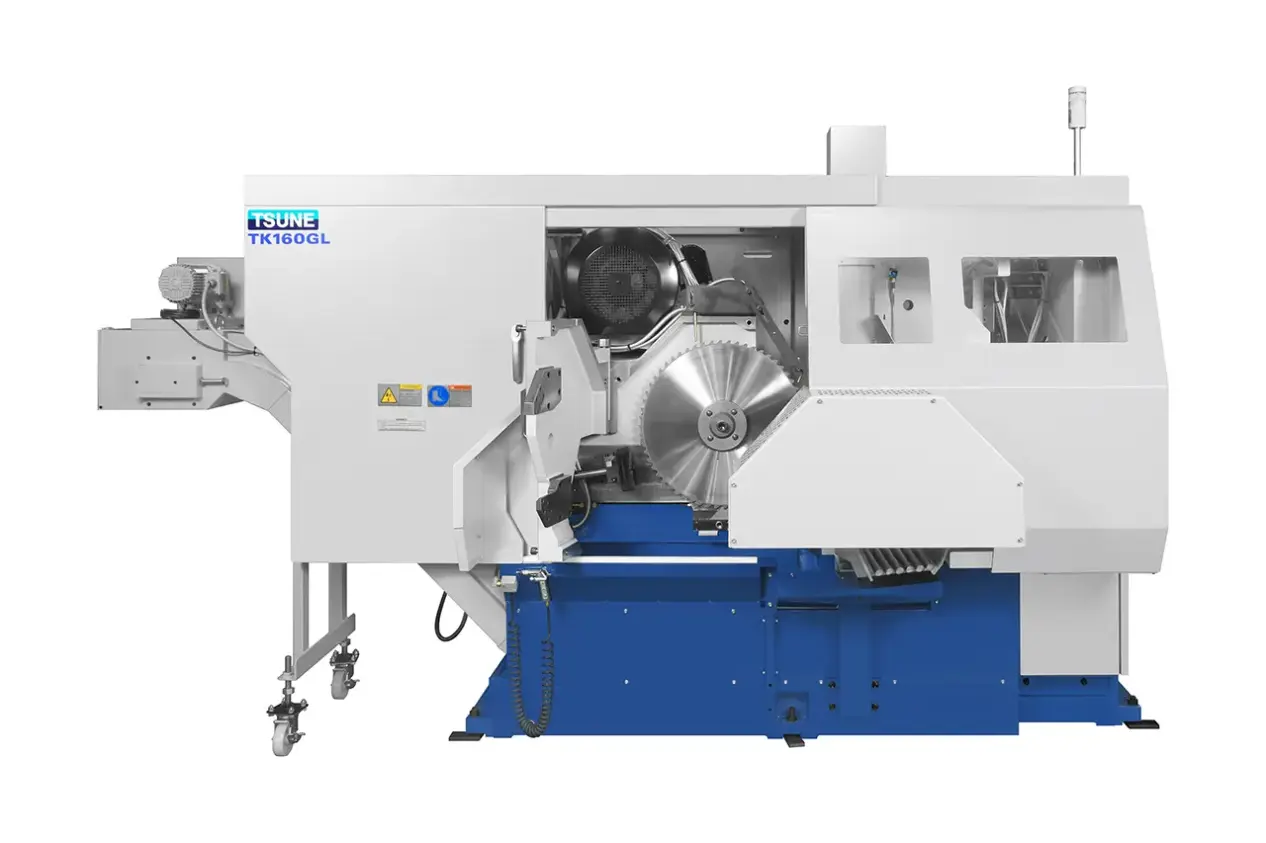

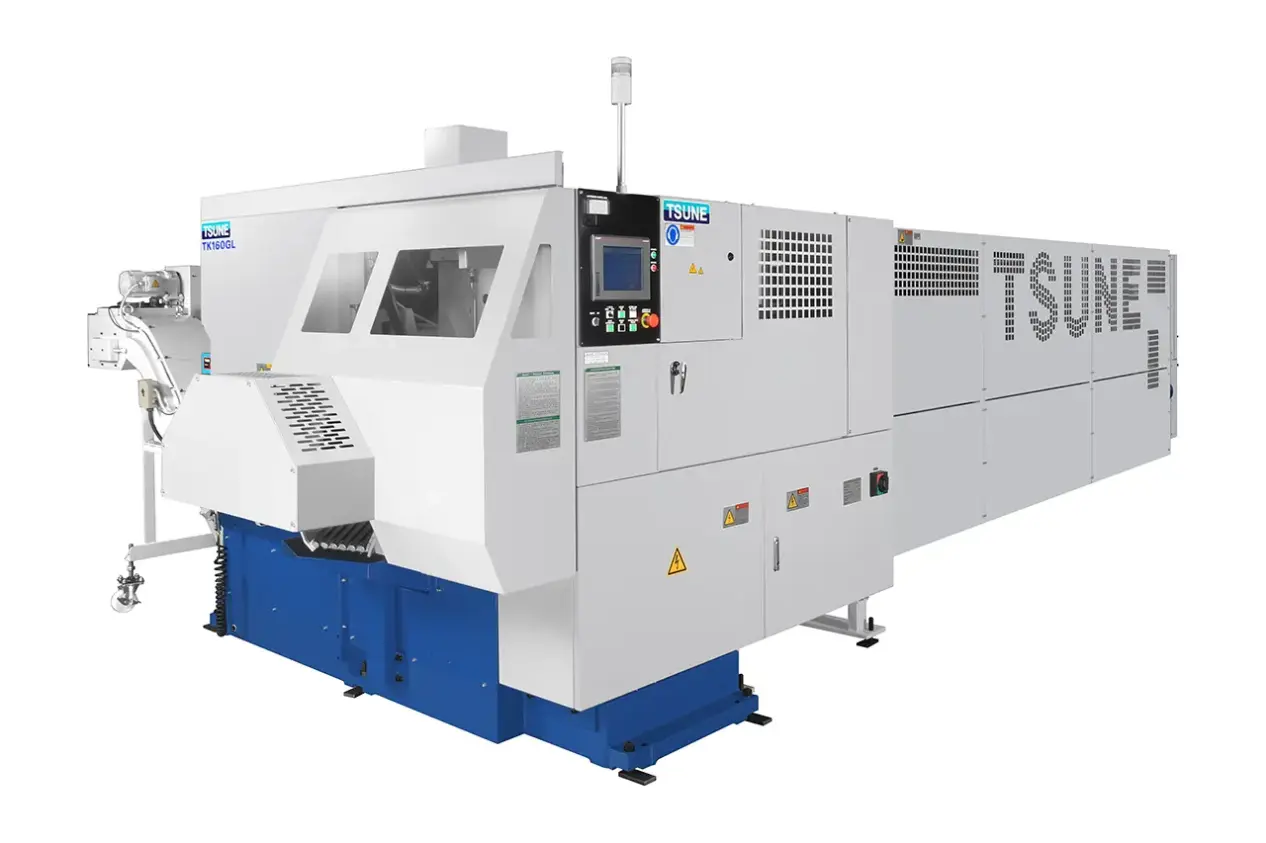

TK160GL

Video Features Specifications

This automated CNC saw is capable of achieving a nearly machined finish with high precision at remarkable speeds. Operators of any skill level can easily set up the machine and then step away.

Request A Quote


TSUNE Mist

Longer blade life, less cleanup.

Durable

Built to last, even in the harshest environments.

Safe

Safety measures without compromise.

Customizable

Configure a machine to fit your needs.


Discover all the features

Specifications

Base Machine Capacity (Round) 30mm - 160mm 1.181in - 6.299in
Capacity (Square) 30mm - 150mm 1.181in - 5.906in
Cut Off Length 15mm - End of Bar
ⓘLengths over 100mm require support
 0.591in - End of Bar
ⓘLengths over 3.937in require support
GFC Stroke (standard) *Upgrades Available
ⓘUp to
1000mm (39.37in)
 700mm 27.559in
Minimum Possible Remnant 85mm 3.346in
Saw Motor 18.5 kW 25 HP
Saw Head Feed AC servo motor + Ball screw
Bar Stock Feed AC servo motor + Ball screw
Material Type Designed for ferrous cutting operations. Contact us for a complete list of material grades.
Saw Weight 4,450 kg 9,804 lbs

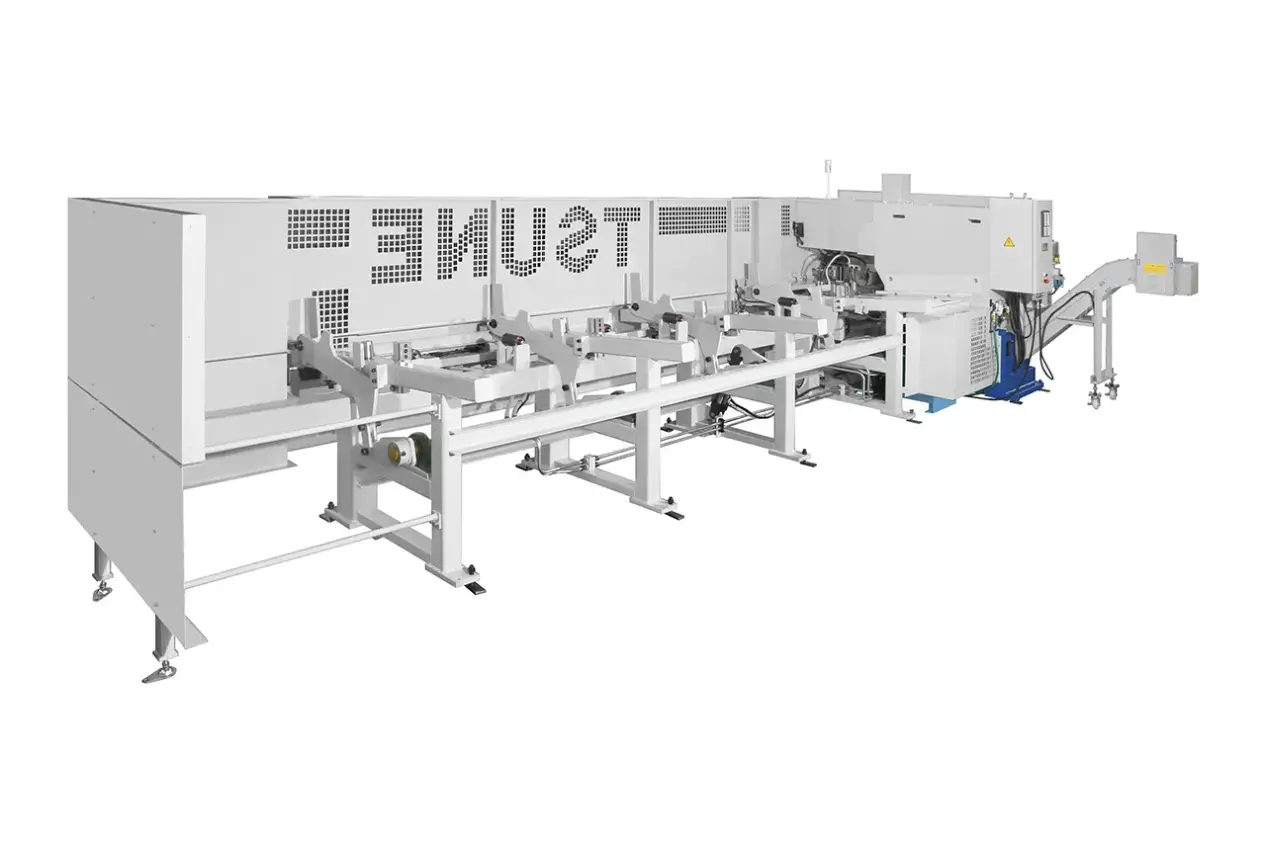

Auto Loader Magazine Width 870mm 34.252in
Material Length (standard) *Upgrades Available 3 - 6m 10 - 20ft
Max Loading Weight 4,800 kg 10,575 lbs
Auto Loader Weight 1,500 kg 3,305 lbs

Features

TSUNE Mist

Less cleanup and better performance.

Automatic Clamping

No need to manually adjust clamps.

High Precision

Repeatable and precise cut lengths all day long.

Unmatched Support

Anything you need, we're ready to help.

Spare Parts

We have what you need to stay operational.

Based in the USA

Work directly with Tsune experts in the US.
